TI-99/4A FAQ: TIPI – TI To Raspberry PI connection

What is TIPI?

TIPI is an inexpensive hard drive replacement for the TI-99/4A.

Sidecar TIPI with budget case
Sidecar TIPI with budget case

TIPI is an inexpensive hard drive replacement for the Geneve directly supported with MDOS 7.30 and also is available in GPL/Rompage mode in 7.30 and older versions of MDOS.

TIPI stands for TI to Raspberry PI connection. This leverages the cheap storage and internet connectivity of the PI for use on your TI-99/4a computer.

In a nutshell, you get an equivalent to a hard disk, floppy drive emulation and internet connection as well as access to peripherals on the PI (such as the mouse, ports, clock etc)

TIPI also provides DSKx. redirect that allows you to “map” a floppy drive device to a folder on TIPI.. This is not disk “image” emulation but allows you to use level 1 and level 2 file access to data on the drive.  This is compatible with 99% of software out there with only a few exceptions.

TIPI provides access to the internet including FTP and TELNET applications that run natively on the TI.  PI.HTTP device allows you to read files from a HTTP server on the internet, effectively allowing you to load programs from a web server such as PI.HTTP://ftp.whtech.com/TIPI/DM2K  or read in data from a website such as the WEATHER program that is written in extended basic and reads in the national weather service data for your local airport or weather station.

The Raspberry PI is connected to the TI-99/4a via a sidecar or PEB box TIPI card.

      • The sidecar TIPI card requires the Jedimatt42 style sidecar memory card with 44pin connector and external power supply to operate.  There are both 32k and 1mb SAMS sidecars available now.

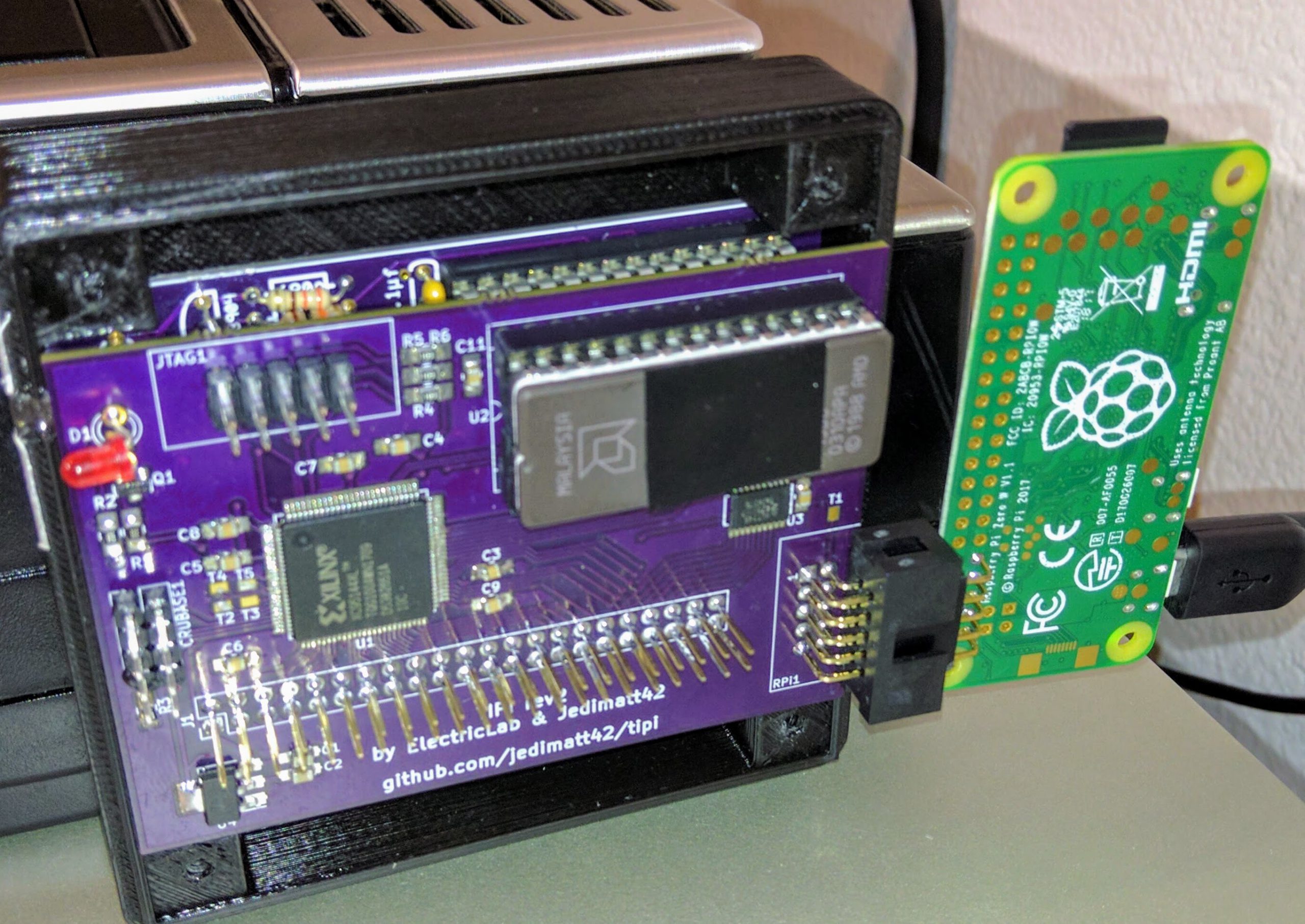

        Sidecar TIPI mounted to 32k sidecar board with Raspberry PI Zero installed
        Sidecar TIPI mounted to 32k sidecar board with Raspberry PI Zero installed

        Sidecar TIPI mounted to a 32k ram card and a raspberry PI 3B connected
        Sidecar TIPI mounted to a 32k ram card and a raspberry PI 3B connected
      • The PEB card plugs directly into the expansion box and requires a 32k memory expansion to load it’s tools/utilities.
        tipi peb with Raspberry PI 3B mounted on the board
        tipi peb with Raspberry PI 3B mounted on the board

        tipi peb installed in TI Expansion Box
        tipi peb installed in TI Expansion Box
      • There is a new combo 32k/tipi sidecar that will also conveniently fits in a speech synth case.

        TIPI/32K combo sidecar board with PI Zero installed
        TIPI/32K combo sidecar board with PI Zero installed

For updated/more info see: https://github.com/jedimatt42/tipi/wiki

TONS of info here: https://www.arcadeshopper.com/wp/the-ti-raspberry-pi-connection/

TIPI related videos:
